Split Core CT vs. Rogowski Coil: Which is Best for Your Smart Meter System?

Powerway Tech: Rogowski Coil Split Core Current Transformers for Smart Meters

Current Sensors & Transformers: Your Guide to Precision Power Monitoring

Current sensors, also known as current transformers (CTs), are essential devices that measure electrical current by leveraging magnetic fields to generate proportional outputs. They work seamlessly with both AC and DC systems, providing non-invasive, real-time insights into energy usage. At Powerway Tech (http://www.powerway-tech.com), we specialize in delivering cutting-edge solutions for industrial and commercial applications.

How Do Current Sensors Work?

When current flows through a conductor, it creates a magnetic field. AC sensors use inductive technology to detect this field’s fluctuations, while DC sensors rely on Hall Effect technology for precise measurements. For example, our CT-1020 (20A/20mA) models utilize advanced inductive coils to convert primary current into a measurable voltage signal (e.g., 333mV at 400A), ensuring compatibility with smart meters and energy management systems.

Key Types of Current Sensors

Hall Effect Sensors (DC/AC)

Measure both AC and DC currents using the Hall Effect principle.
Ideal for applications requiring high accuracy and compact design.

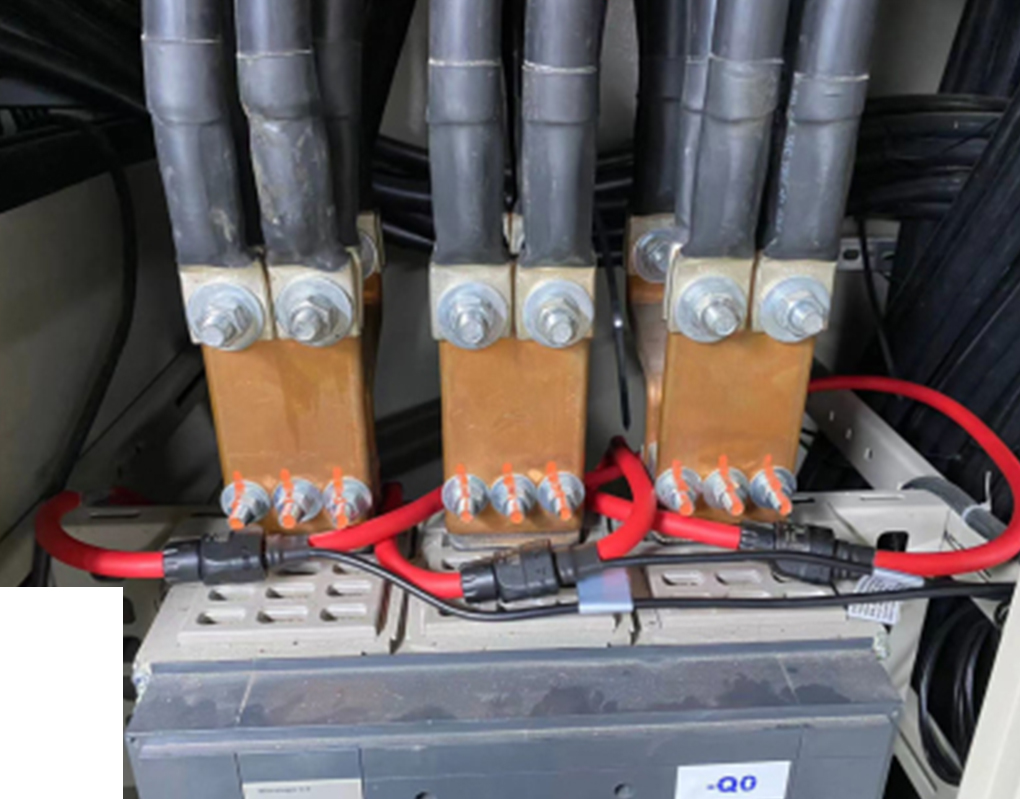

Rogowski Coils

Flexible, clamp-on sensors perfect for tight spaces or live wire installations.
Lightweight and easy to deploy, making them popular for temporary monitoring.

Split-Core Current Transformers

Snap-around design for quick installation in existing setups.
Balances accuracy with convenience, suitable for retrofitting projects.

Solid-Core Transformers

High-precision sensors for new installations.
Require conductor disconnection during setup but offer superior performance.

Closed-Loop (Zero-Flux) Sensors

Advanced feedback systems eliminate noise and temperature drift.
Ideal for critical applications like smart grid infrastructure.

Applications & Benefits

Smart Metering: Integrate with smart meters to track energy consumption in real time.
Facility Management: Optimize energy usage and reduce costs.
Fault Detection: Identify machinery issues before they escalate.
Sub-Metering: Allocate energy costs accurately across tenants or departments.

Explore our range of Rogowski coils, split-core transformers, and Hall Effect sensors at Powerway Tech for tailored solutions.

Technical Considerations

VA Rating: Ensures the CT can power connected devices (e.g., meters) without under-reporting.
Turns Ratio: Determines voltage/current transformation (e.g., $\frac{N _{S}}{N _{P}}$ ).
Signal Conditioning: Converts raw data into usable formats for smart systems.
