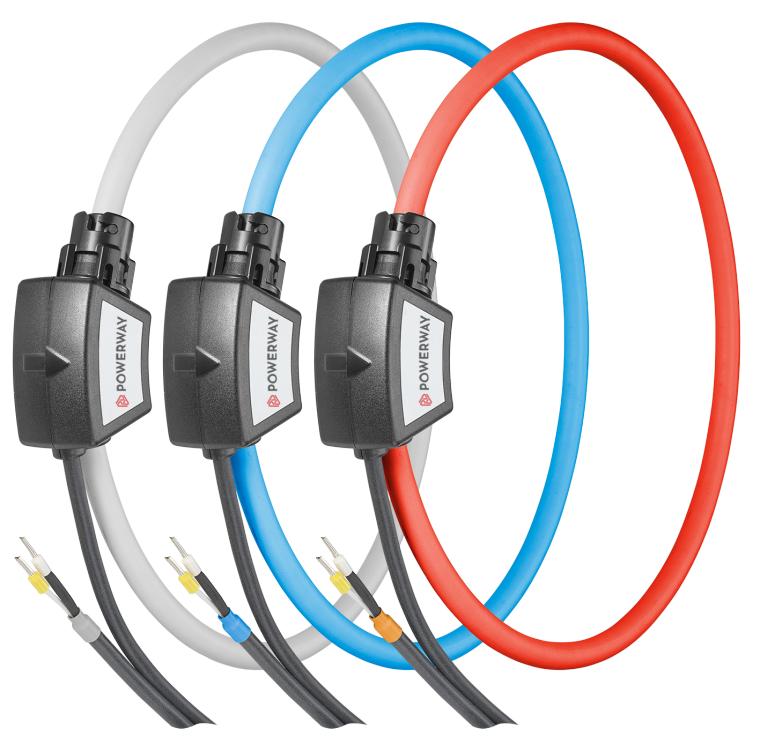

NRC Series High-Precision Flexible Rogowski Coil Current Sensor
Model: NRC 100mV Output
Key Features:
Innovative Design: Ø8mm screw-type flexible structure with next-generation Rogowski® coil technology for conductor diameters 30-120mm
Smart Integration: Seamless compatibility with portable test equipment, available in multiple sizes (30/60/90/120mm)
Technical Breakthroughs:
① Triple-Shielding System: Proprietary shielding design reduces external EMI by >98%

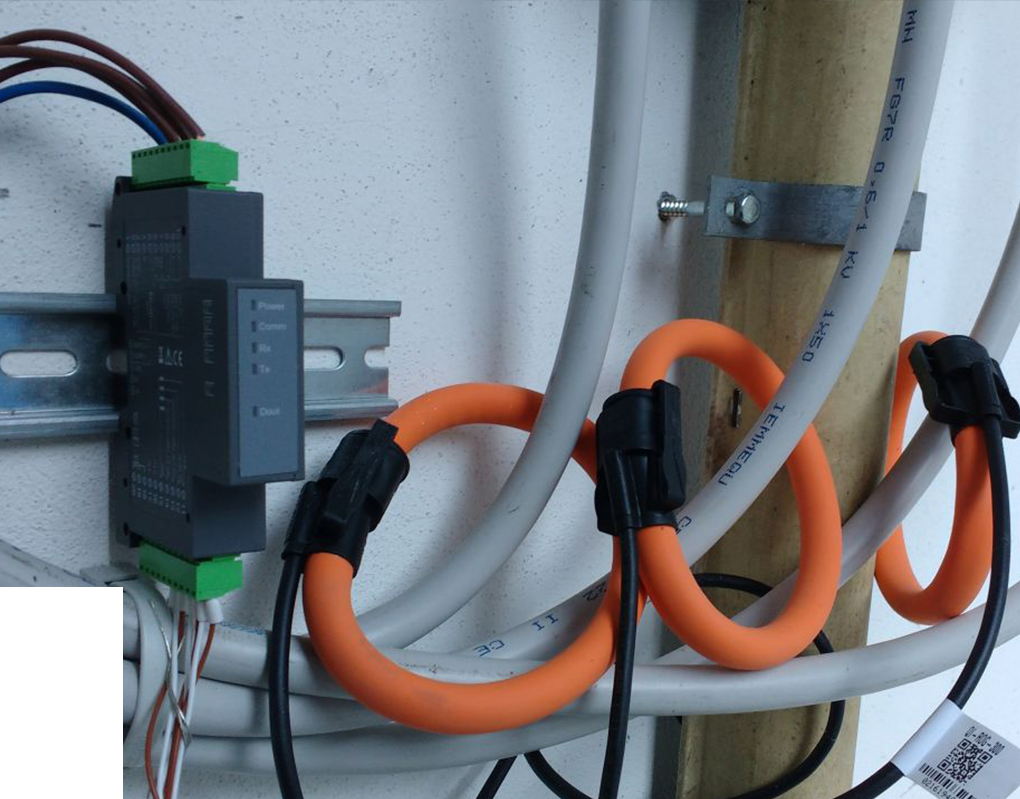

② Integrated Smart Integrator: Direct 100mV output compatible with DIN-rail/panel meters (e.g., NRC-800 series)
Environmental Performance:
▶ IP68-rated (1m underwater immersion for 24 hours)
▶ Wide operating temperature: -40°C to +85°C
▶ Shock/vibration resistance (IEC 60068-2-6, 20g/11ms)
Applications:

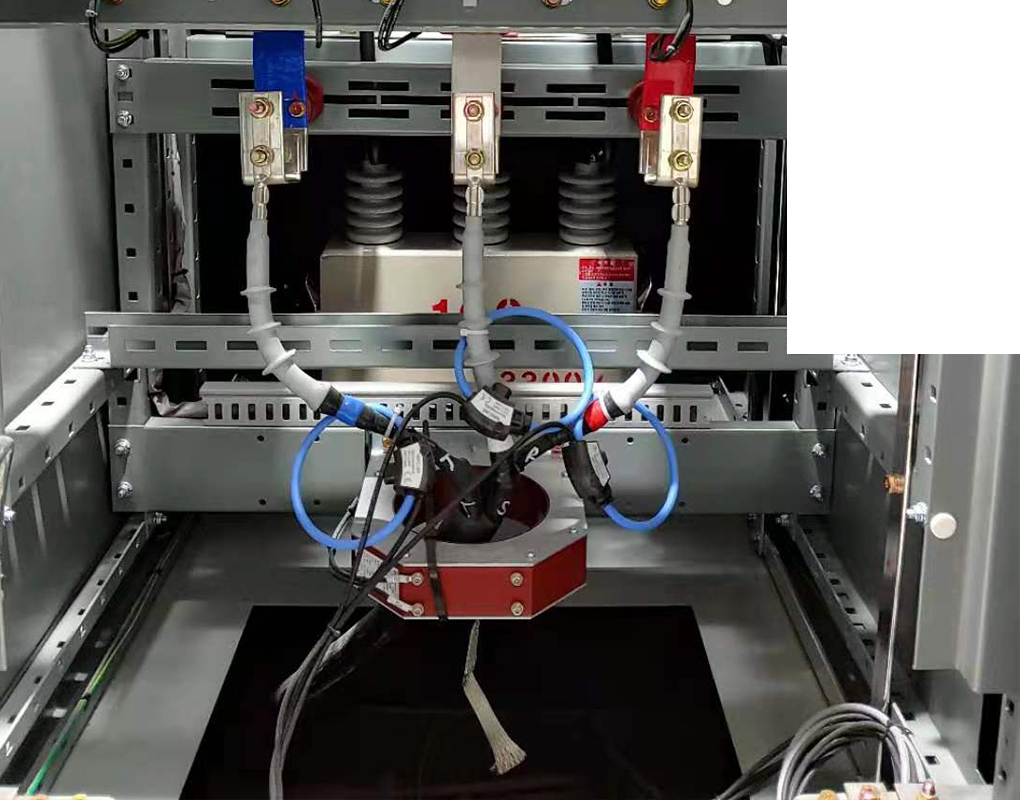

Power system inspections | Industrial equipment monitoring | Renewable energy facility testing | Research laboratories
Product Advantages:
Accuracy: 0.2% (50Hz/60Hz reference)
Dynamic Response: 10μs rise time (10%-90%)
Safety Compliance: Open-circuit voltage ≤10V (IEC 61010-1 certified)
Portability: Lightweight (<300g) with single-hand operation design
(Note: Technical specifications can be adjusted according to actual product data)
