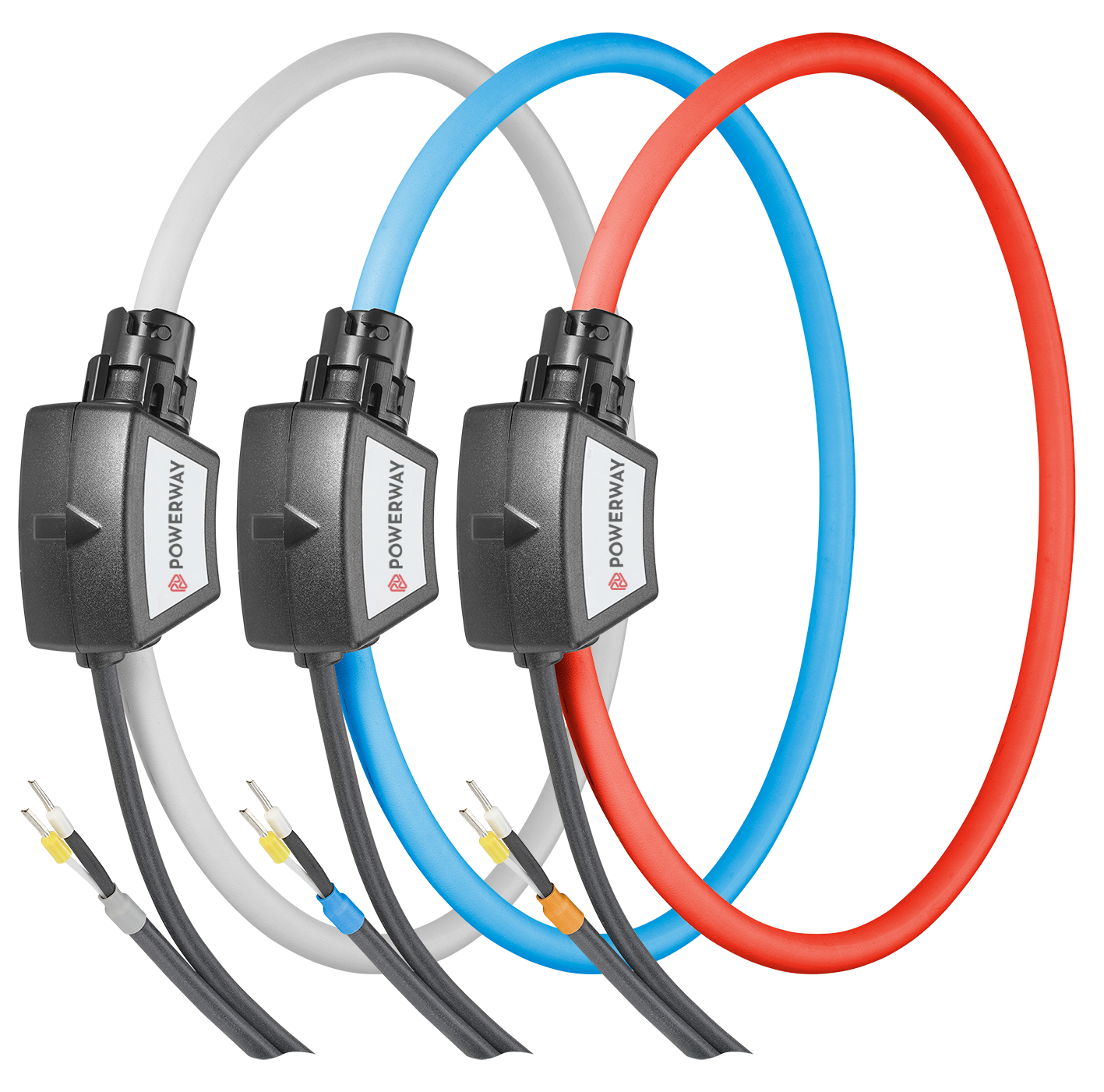

NRC 100mV Output Rogowski Coil Current Sensor - High-Precision & Flexible
NRC Series High-Precision Flexible Rogowski Coil Current Sensor
Model: NRC 100mV Output
Key Features:
Innovative Design: Ø8mm screw-type flexible structure with next-generation Rogowski® coil technology for conductor diameters 30-120mm
Smart Integration: Seamless compatibility with portable test equipment, available in multiple sizes (30/60/90/120mm)
Technical Breakthroughs:
① Triple-Shielding System: Proprietary shielding design reduces external EMI by >98%
② Integrated Smart Integrator: Direct 100mV output compatible with DIN-rail/panel meters (e.g., NRC-800 series)
Environmental Performance:
▶ IP68-rated (1m underwater immersion for 24 hours)
▶ Wide operating temperature: -40°C to +85°C
▶ Shock/vibration resistance (IEC 60068-2-6, 20g/11ms)
Applications:
Power system inspections | Industrial equipment monitoring | Renewable energy facility testing | Research laboratories
Product Advantages:
Accuracy: 0.2% (50Hz/60Hz reference)
Dynamic Response: 10μs rise time (10%-90%)
Safety Compliance: Open-circuit voltage ≤10V (IEC 61010-1 certified)
Portability: Lightweight (<300g) with single-hand operation design
(Note: Technical specifications can be adjusted according to actual product data)
Model: NRC 100mV Output
Key Features:
Innovative Design: Ø8mm screw-type flexible structure with next-generation Rogowski® coil technology for conductor diameters 30-120mm
Smart Integration: Seamless compatibility with portable test equipment, available in multiple sizes (30/60/90/120mm)
Technical Breakthroughs:
① Triple-Shielding System: Proprietary shielding design reduces external EMI by >98%
② Integrated Smart Integrator: Direct 100mV output compatible with DIN-rail/panel meters (e.g., NRC-800 series)
Environmental Performance:
▶ IP68-rated (1m underwater immersion for 24 hours)
▶ Wide operating temperature: -40°C to +85°C
▶ Shock/vibration resistance (IEC 60068-2-6, 20g/11ms)
Applications:
Power system inspections | Industrial equipment monitoring | Renewable energy facility testing | Research laboratories
Product Advantages:
Accuracy: 0.2% (50Hz/60Hz reference)
Dynamic Response: 10μs rise time (10%-90%)
Safety Compliance: Open-circuit voltage ≤10V (IEC 61010-1 certified)
Portability: Lightweight (<300g) with single-hand operation design
(Note: Technical specifications can be adjusted according to actual product data)
Product Details
• High linearity from 1A to 100kA
• Wide dynamic range
• Very useful with large size or awkward shaped conductors or in places with limited access
• No danger from open-circuited secondary
• Not damaged by large overloads
• Non-intrusive, no power drawn from the main
• Measurement uniformity at any position of the conductor inside the coil
• Excellent degree of rejection to the external current conductor
• Frequency: 50/60 Hz nominal, (safe to operate at any frequency)
| Reference Rated current | 100A,600A,3000A,6000A...(Unlimited) | |
| Ratio@50Hz | Calibrated | 22.5mV/kA |
| (Manufacturing tolerance<0.5%) | 50mV/kA | |
| 85mV/kA | ||
| 100mV/kA | ||
| ... | ||
| Uncalibrated | ... | |
| (Manufacturing tolerance<5%) | 56mV/kA | |
| 95mV/kA | ||
| 108mV/kA | ||
| Sensitivity temperature drift coefficient | Uncalibrated, ＜50ppm/℃ | |
| Calibrated, ＜100ppm/℃ | ||
| Internal resistance temperature drift coefficient1） | Uncalibrated, ＜3800ppm/℃ | |
| Read Accuracy | 0.5%class (Vertically centered position) | |
| Internal resistance | 50～250 Ω | |
| Position Error 2） | ＜1% | |
| Output on 0A | ＜0.05mV | |
| (zero drift) | ||
| Phase error | ＜0.5°(45Hz～65Hz) | |
| Linearity | ±0.1% (1%～100%) | |
| Bandwidth(3dB) | 1Hz～20kHz | |
| Operating temperature | -40℃～85℃ | |
| Coil Section | 8mm | |
| Lead length(default) | 2 meter | |
| For other requirements, please contact us for customization. | ||
