PowCT-16

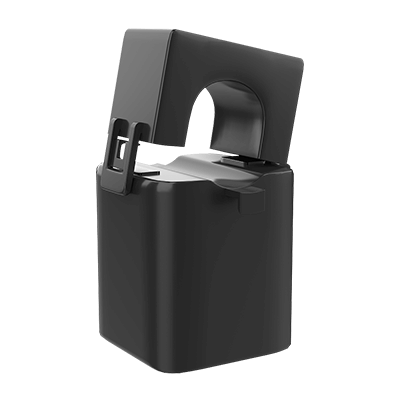

The PowCT Hinged split-core current transformers are high-accuracy sensors with an ultra-compact design that is ideal for monitoring branch circuits in electrical panels with limited space. The hinged split-core design streamlines installation and does not require disconnecting cables or wires.

Product Details

Applications

● Measures AC current flow to electric motors,lighting, air condition equipment, etc. Compatible with HVAC temperature control, power management, building automation systems.

Specifications

  ●   Rated Primary current: 5-150Aac
  ●   Rated Secondary: mA or 0.333-3.53Vac
  ●   Accuracy: 0.5, 1.0, 3.0 Class
  ●   Rated security coefficient: FS<5
  ●   Case Material: nylon Resin UL flame retardant rating 94-V0
  ●   Highest Voltage for Equipment Um (rms): 600Vac
  ●   Rated Power-Frequency Withstand Voltage (rms): 3,000 Vac
  ●   Frequency Range: 50/60Hz.
  ●   Operating Temperature: -15ºC to 50ºC
  ●   RoHS compliant
  ●   CE-approved
  ●   Leads:0.8Foot(240mm),UL 1015,Twisted Pair,0.34 mm2(22AWG)

Model	Input Ratings	Output Ratings	Accuracy	Window Size	Lead
PowCT-05	0-15A	0-15mA/333mV	0.50%	5mm	2 Meter
PowCT-10	0-80A	0-75mA/333mV	0.50%	10mm	2 Meter
PowCT-16	0-150A	0-150mA/333mV	0.50%	16mm	2 Meter
PowCT-24	0-250A	0-250mA/333mV	0.50%	24mm	2 Meter
PowCT-36	0-630A	0-500mA/333mV	0.50%	36mm	2 Meter
PowCT-50	0-1200A	0-500mA/333mV	0.50%	50mm	2 Meter
