Product Features:
• 480*800 high-resolution true color screen
• Full touch buttons
• Multiple access ports
• Supports data, event, and waveform recording
• USB data export

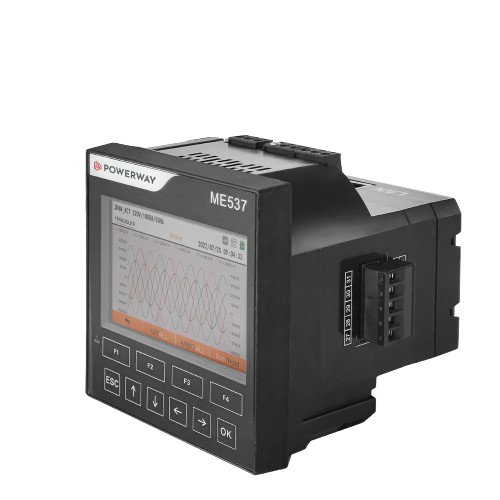

• Voltage and current waveform and vector diagram display
• 1-50th harmonic values and histogram display
| Technical Parameters | |

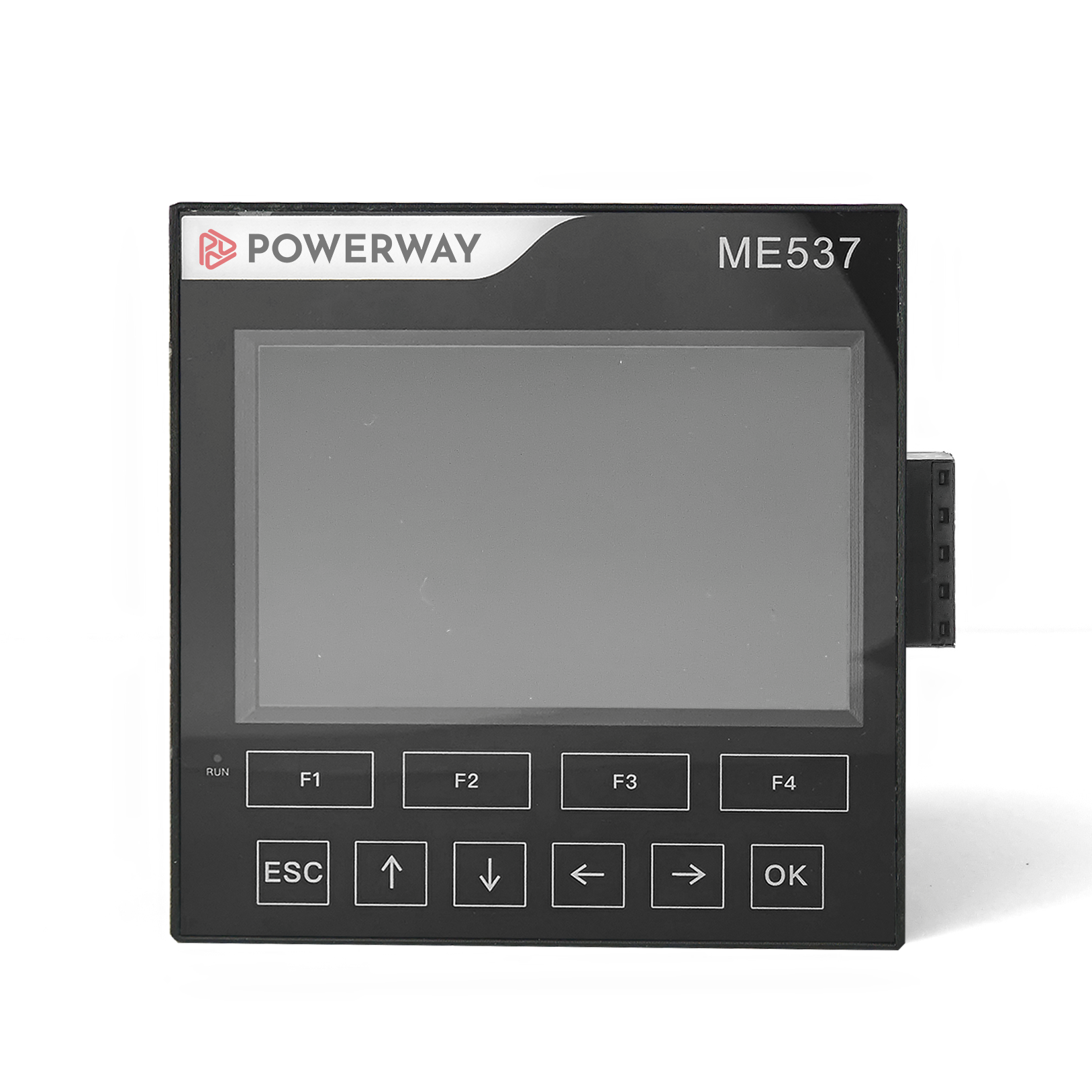

| Model | ME537 |
| Type | Power Quality Analyzer |
| Application |
Power
Analysis, Energy Measurement Power Quality Analysis |
| Power Quality |
Voltage
Sags, Swells, Interruptions, Harmonics, Unbalance, Frequency |
| Harmonics |
Voltage
and Current Harmonics, Total Harmonics, Odd Harmonics, Even Harmonics,1-50th Harmonic Percentage and Values |
| Waveform | Three-Phase Voltage, Three-Phase Current,Waveform Recording |
| Vector Diagram | Three-Phase Voltage, Three-Phase Current |

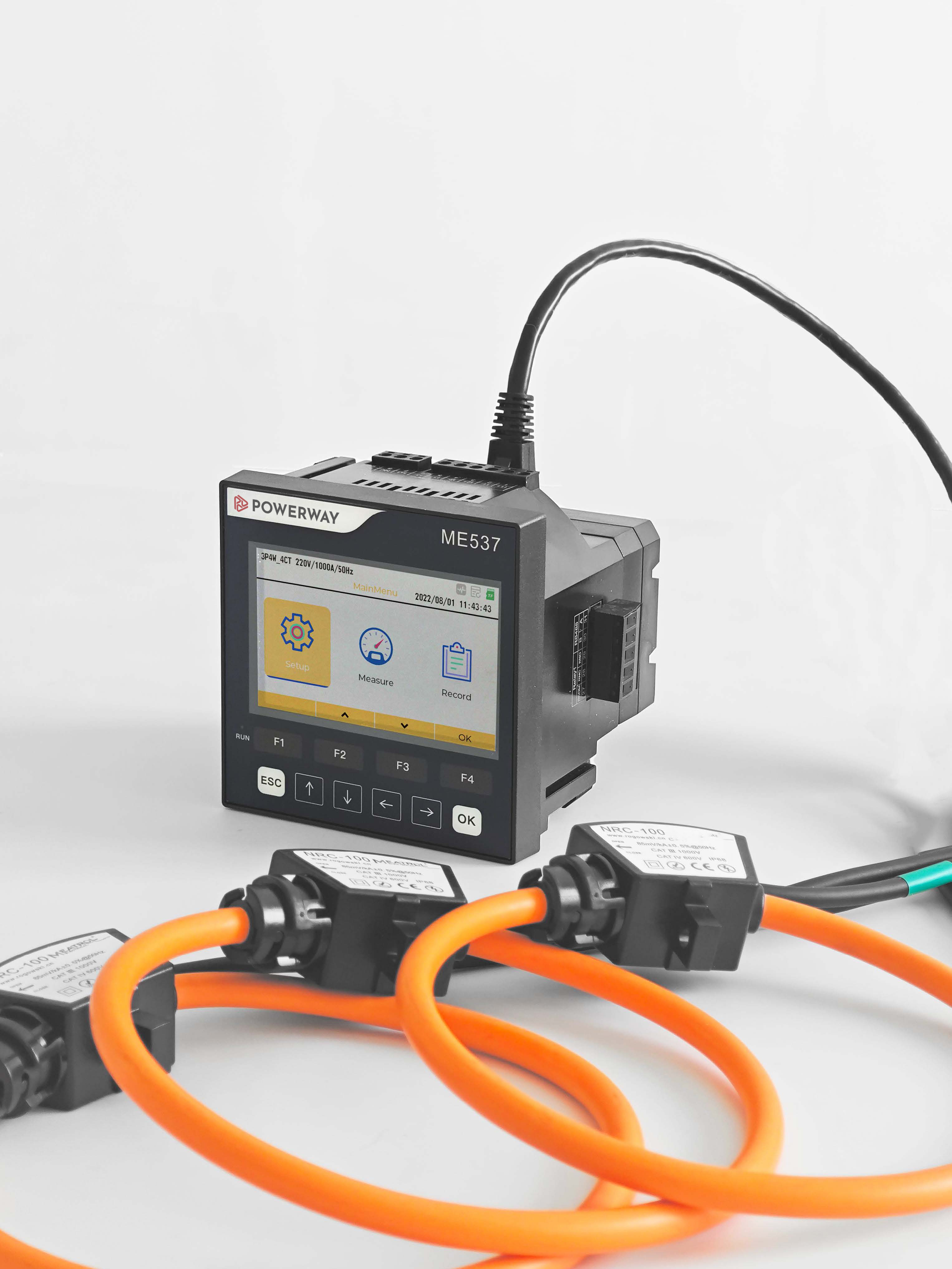

| Current Sensor Type | Rogowski Coil, Voltage Output Current clamp |
| Voltage Sensor Type |
Direct
Connection, Connection via PotentialTransformer |
| Wiring Method |
3PH4W;3PH3W 1PH2W (L-N); 1PH2W(L-L);1PH3W(L-L-N) |
| Storage | Built-in 32GB Micro SD Card, USB Data Download |
| Power Supply | 85 - 305VAC/100 - 430VDC |
|
Maximum Power Consumption |
3.5VA |
| Display Screen | 3.5-inch IPS |
| Weight | 850g |
| L*W*D | 96*96*94MM |
