PowCT-10

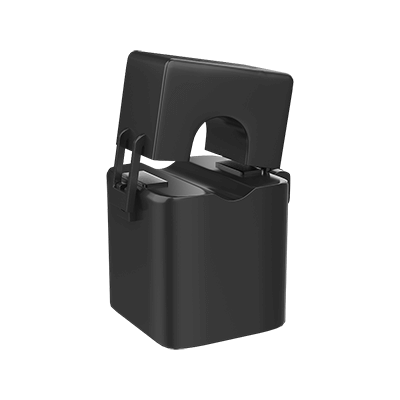

The PowCT Hinged split-core current transformers are high-accuracy sensors with an ultra-compact design that is ideal for monitoring branch circuits in electrical panels with limited space. The hinged split-core design streamlines installation and does not require disconnecting cables or wires.

Product Details

Applications

● Measures AC current flow to electric motors,lighting, air condition equipment, etc. Compatible with HVAC temperature control, power management, building automation systems.

Specifications

  ●   Rated Primary current: 5-80Aac
  ●   Rated Secondary: mA or 0.333-3.53Vac
  ●   Accuracy: 0.5, 1.0, 3.0 Class
  ●   Rated security coefficient: FS<5
  ●   Case Material: nylon Resin UL flame retardant rating 94-V0
  ●   Highest Voltage for Equipment Um (rms): 600Vac
  ●   Rated Power-Frequency Withstand Voltage (rms): 3,000 Vac
  ●   Frequency Range: 50/60Hz.
  ●   Operating Temperature: -15ºC to 50ºC
  ●   RoHS compliant
  ●   CE-approved
  ●   Leads:0.8Foot(240mm),UL 1015,Twisted Pair,0.34 mm2(22AWG)

Input Ratings	Output Ratings	Accuracy	Window Size	Lead
5A	333mV or mA	0.50%	0.4"	2m
20A	333mV or mA	0.50%	0.4"	2m
30A	333mV or mA	0.50%	0.4"	2m
40A	333mV or mA	0.50%	0.4"	2m
50A	333mV or mA	0.50%	0.4"	2m
60A	333mV or mA	0.50%	0.4"	2m
80A	333mV or mA	0.50%	0.4”	2m
