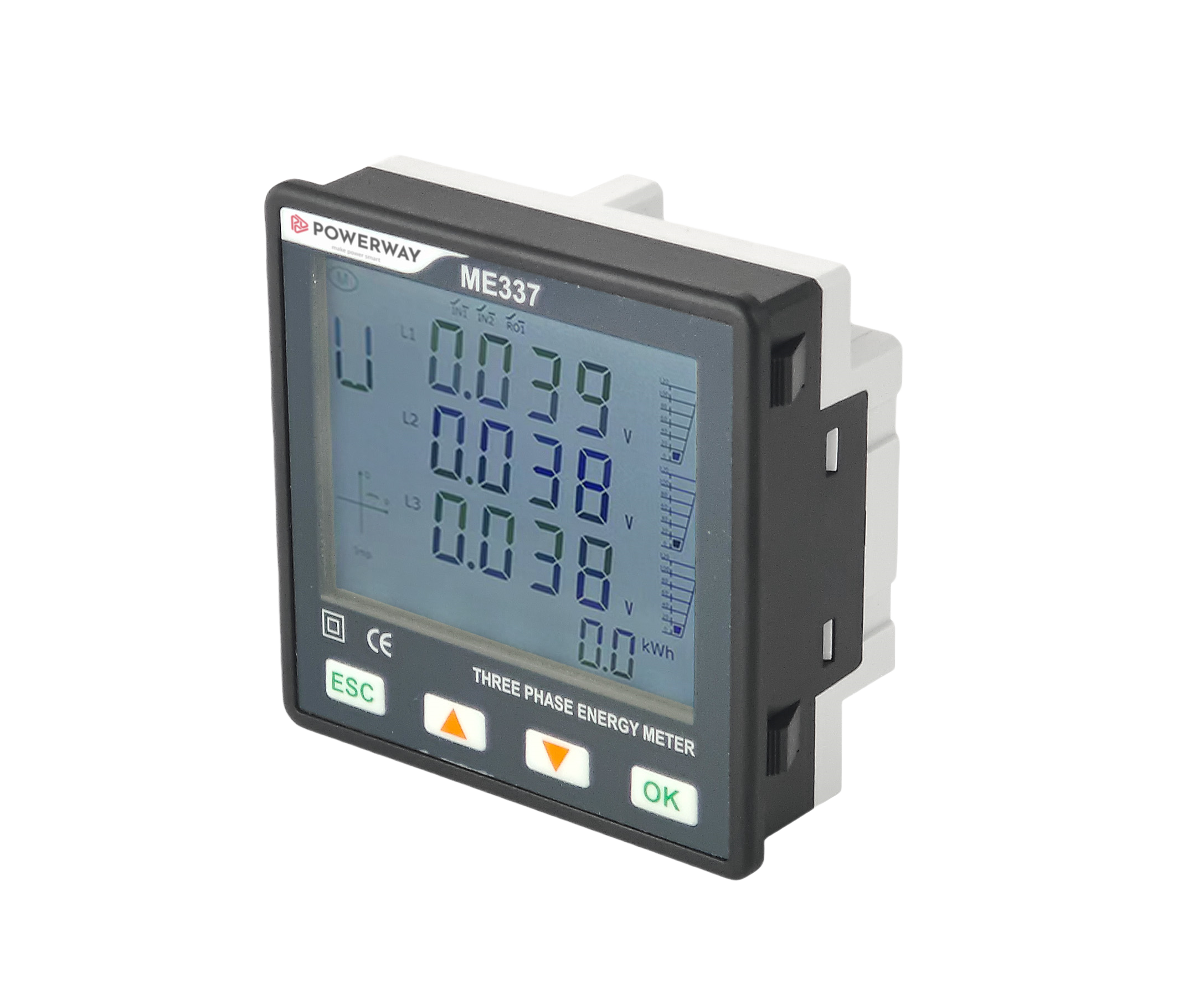

Product Features

lFast installation

Product size is standard 96 panel type

Installation method is a snap on type, without screws

lSupport multiple current transformer connections

The ME337N series supports rogowski coil direct connection, without the need for an external integrator

The ME337N series supports voltage output type current transformer connection simultaneously

The ME337C series supports direct current connection, with a maximum connection current of 7A

lSupport multiple power grid systems

Supports three-phase four wire, three-phase three wire, one phase three phase, and single-phase systems

lMultiple power supply options available

 Available in 220VAC, 24VDC and 12VDC power supplies

lSupport voltage and current harmonic measurement

Supports voltage, current, fractional harmonics, up to 50 measurements

Support voltage and current harmonic distortion and harmonic value measurement

Support voltage and current total harmonic distortion measurement

lMore features

Support 6 rate tariff energy, support RTC switching or manual switching

Support demand measurement

Support alarm setting

Support current transformer orientation modification

Support current channel modification
