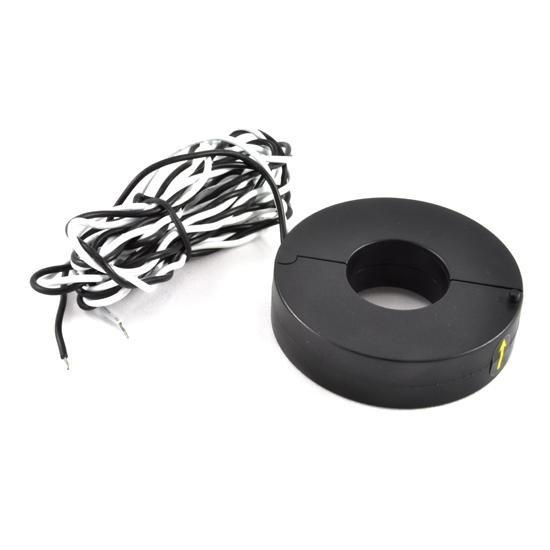

Split-Core CT ESCT-025-400

These 25mm Split Core CTs are easy to install: simply snap these current transformers around the wires being read. They are very compact and can measure the current used in the majority of residential electrical systems. These CTs are designed to be used for any load from 1/4 amp to 200 amps.

Product Details

• Model: SCT-025-200

• Type: Split Core

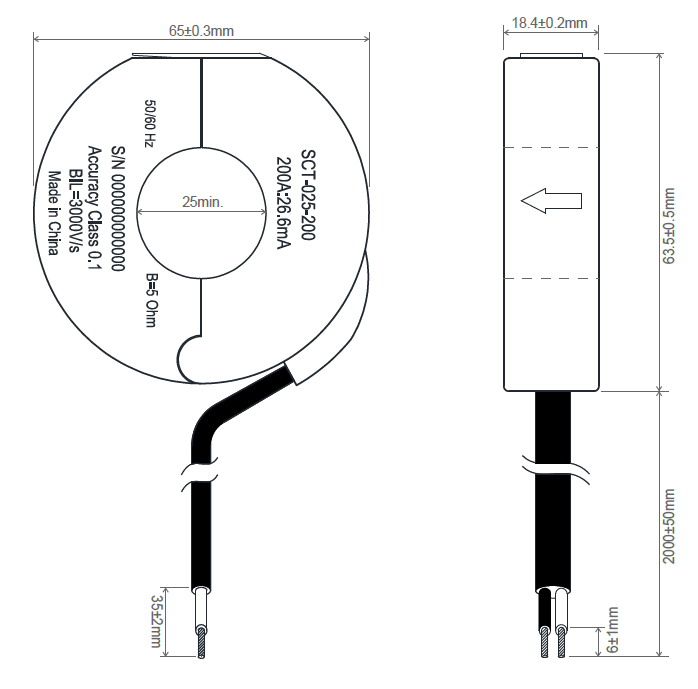

• Rated Input: 0-200 Amps AC Inside Diameter: 25mm Outside Diameter: 65mm Output: 26.6mA

• Accuracy: ± 0.1% accurate.

• When used in conjunction with our Omnimeters, the installation will have an accuracy of ± 0.5%.

• Leads: 6 feet, 22AWG, UL10155

• Internal windings: 7,518

• Frequency: 50–60Hz

• Operating Temperature: -40ºF–158ºF

• Storage Temperature: -49ºF–185ºF • The arrow points towards the load

Model	Input Ratings	Output Ratings	Accuracy	Window Size	Lead
PowCT-05	0-15A	0-15mA/333mV	0.50%	5mm	2 Meter
PowCT-10	0-80A	0-75mA/333mV	0.50%	10mm	2 Meter
PowCT-16	0-150A	0-150mA/333mV	0.50%	16mm	2 Meter
PowCT-24	0-250A	0-250mA/333mV	0.50%	24mm	2 Meter
PowCT-36	0-630A	0-500mA/333mV	0.50%	36mm	2 Meter
PowCT-50	0-1200A	0-500mA/333mV	0.50%	50mm	2 Meter
