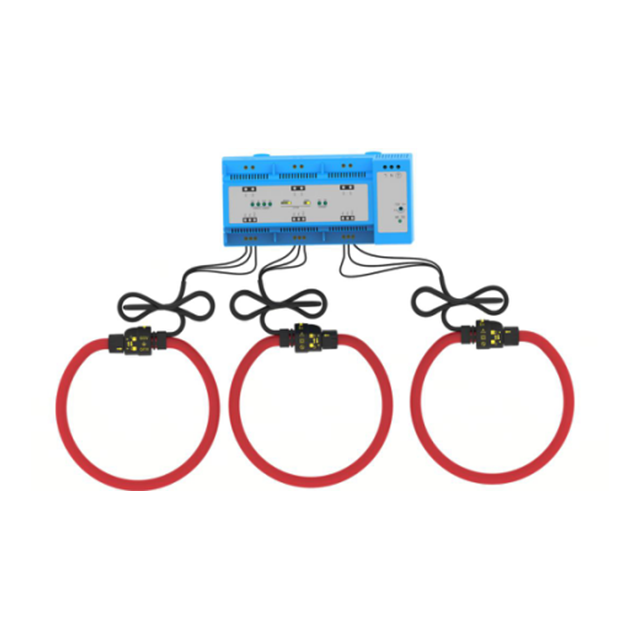

5A Integrator Kit: 3-Channel Rogowski Coil Current Transformer with 4 Selectable Ranges

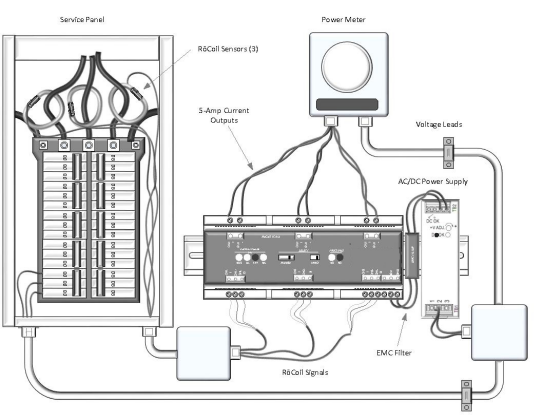

The Rogowski coil split current transformer Kit has a three-channel 1(5)A integrator output that can be used for most power meters and devices with 1 (5) A input. The kit offers four selectable measurement ranges including: 500A, 1kA, 2.5kA and 5kA, the detection range of 0.5% to 120% of the rated current input .Applied to 50 / 60Hz system, the rated frequency range of 45Hz to 65Hz. The mounting bracket is DIN rail or surface mount, with 24Vdc power supply.

Product Details

Parameters	Data	Note
Range of current measurement	0.5 - 5000 A	（80 dBSignal range）
Output	0 - 5 A（RMS）
Variable range stalls	500A，1kA，2.5kA，5kA	（selectable ）
Max burden	1.25 VA each channel
Max output	50 mΩ
impedance	50 mΩ
Measuring channel	Single / three phase
frequency	50/60 Hz
Ratio error	±1%
Phrase error	< 1.5 ° @ 50Hz
Linearity	±0.3% （5% - 120%In）
Position sensitivity	±2%
Field effect	±1% Range (distance coil)＞200mm）
environment	Indoor
Power requirements	voltage：48VDC ±10％，30w
Power requirements	current：0.6Amp DC @ 48VDC
Cable length	2m（Measuring head to electronic module）
output/input connection	18 - 28 AWG / 12 - 18 AWG
Operating temperature	-20℃-40℃
Relative humidity	5％〜95％no Condensation
Accessories	TS35/7 DIN installation trail
