333mV Integrator Kit - Industrial Rogowski Coil Current Measurement Solution

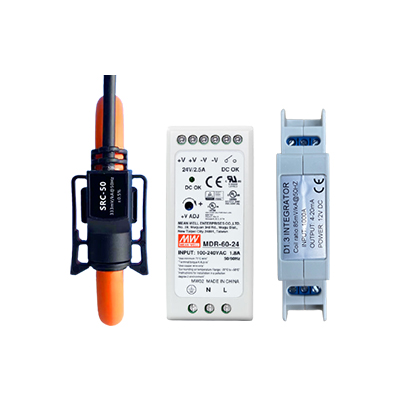

D1 is a Industrial Rogowski coil integrator installation in distribution box,in a plastic 1 module DIN-RAIL enclosure, powered directly from the mains.D1 can be combined with any model Rogowski coils.

The available values are: 0-5VDC,0-5VAC,4-20mAC.

Product Details

On request the input value can be customized according to the application.
D1 and Rogowski coil is a very flexible system, suitable for high power load analysis, impulsive current monitoring, DC ripple measurement, etc.
Due to its specific features, flexible Rogowski coil is an extremely comfortable solution for current measurement and can be used in a number of cases where traditional current transducer is not the adequate solution.

Datasheet

Model	D1.1	D1.2	D1.3
Rated output	5V AC rms	5V DC(true-rms)	4-20mA
Maximum Output(overload)	10V AC rms	5V DC	25mA
Output Ripple factor	0.50%	Default 5% (relay to Response time)
Response time	≤1us	Default 100ms(adjustable)
Power consumption	150mW	200mW
Bandwidth	10Hz to 20kHz	20-2kHz
Rated Input	100A
	600A
	1000A
	3000A
	6000A
Read Accuracy	0.5% typical at 1%(≥10A) to 200% of rated Current @25℃
Phase error	≤0.5°
Linearity	±0.2% of reading(1% to 200% of range)
Minimum Current measurement	1A (Ripple 100mA)
Output on 0A（zero drift）	≤2mV
Temperature drift	200ppm/℃
Weight	60g
Dimension	906118mm
Power supply	12V or 24V(best performance on 24V default)
Operating temperature	-20℃ to 70℃
Storage temperature	-30℃ to 90℃
Relative humidity	80% max.without condensation
Protection degree	IP20
Other requirements,please contact us to OEM.
