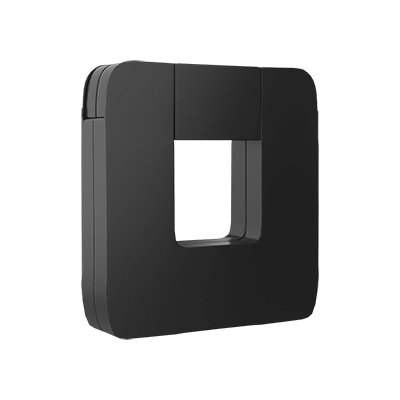

PowCT-1250

● Low cost
● Split core design,safer,easier installation, portable

Applications
● Measures AC current flow to electric motors,lighting,air condition equipment,etc. Compatible with HVAC temperature control,power management,building automation systems.

Product Details

Specifications

  ●    Rated output:0.333Vac
  ●    Accuracy:±1% from 10% to 130% of rated current
  ●   Phase Angle:less than 2 degrees at 50% of rated current
  ●   Insulation Voltage:600Vac
  ●   Maximum Primary Voltage:5000Vac(Insulated Conductor)
  ●   Operating Temperature:-15℃ƒto 50℃.
  ●   Case Material:ABS Resin UL flame retardant rating 94V-O
  ●   Frequency Range:50/60Hz
  ●   Leads:5Foot(1.5m),UL 1015,Twisted Pair,0.34 mm2(22AWG)
  ●   UL&CE recognized.
