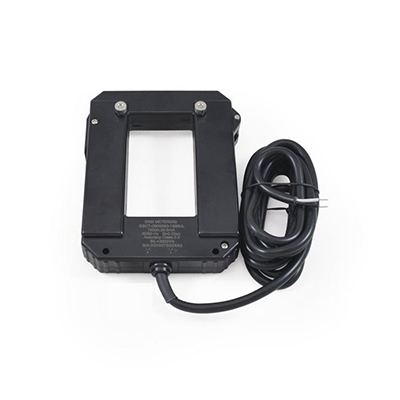

Split-Core CT ESCT-95-1500

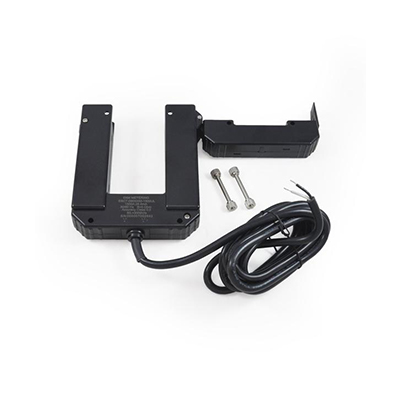

These Split Core CTs are easy to install: simply snap these current transformers around the wires being read. They are very compact and can measure the current used in the majority of residential electrical systems. These CTs are designed to be used in conjunction with electric meters for any load from 1/4 amp to 1,500 amps.

Product Details

• Model: ESCT-090x050-1500

• Type: Split Core

• Rated Input: 1-1500 Amps

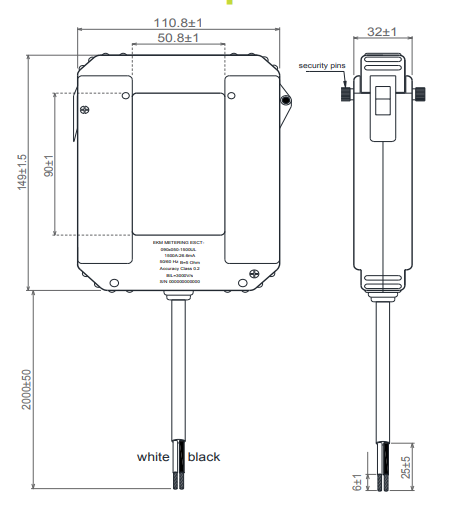

• Inside Diameter: 90x50mm

• Outside Diameter: 149mm

• Output: 26.6mA

• Accuracy: ± 0.2% accurate.

• When used in conjunction with our Omnimeters, the installation will have an accuracy of ± 0.5%.

• Leads: 6 feet, 22AWG

• Internal windings: 56,260

• Frequency: 50–60Hz
