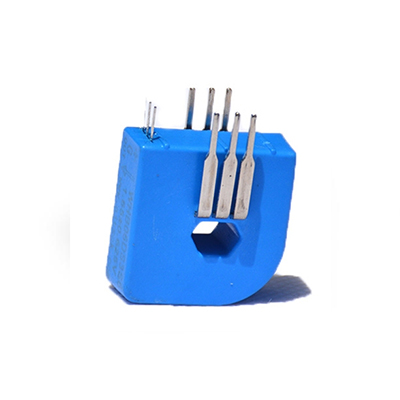

B100-25A Hall sensor

B100 series multi-range current sensor is a closed loop device based on the measuring principle of the hall effect and null balance method, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

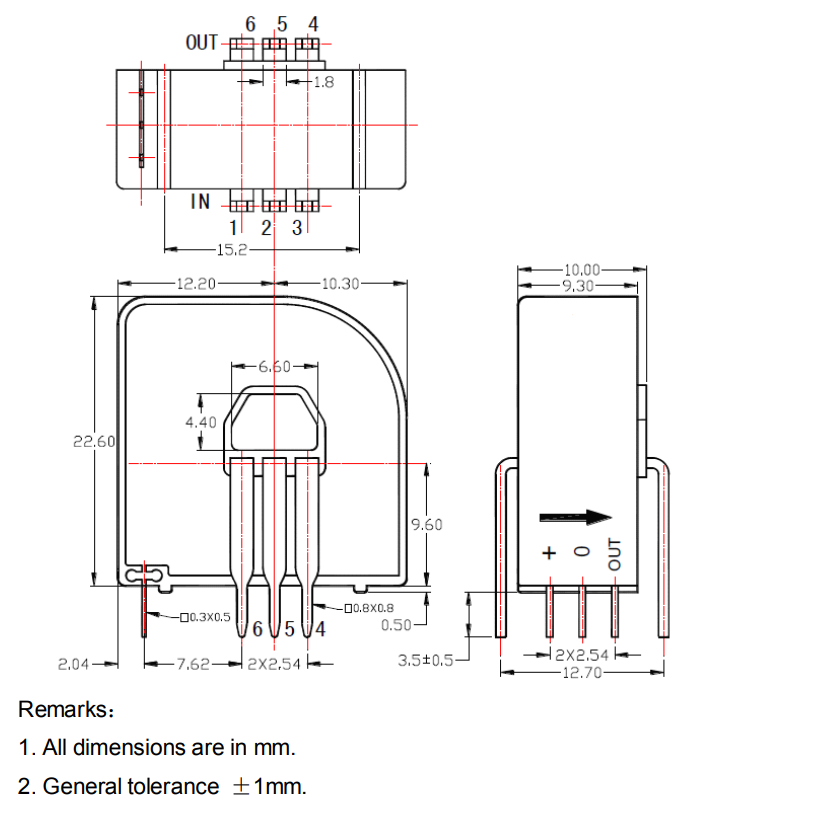

Product Details

Type	B100-6A	B100-15A	B100-25A	B100-50A	Unit
Rated current（Ipn）	6	15	25	50	A
Measure range（Ip）	19.2	48	80	150	A
Turns ratio(Np/Ns)	1:960	1:1200	1:1000	1:1000	T
Internal resister	100±0.1%	50±0.1%	25±0.1%	12.5±0.1%	Ω
Rated output	@Ip=±Ipn	±0.625±0.5%			V
Supply voltage	+5V				V
Power Consumption	≤20+ IpX(Np/Ns)				mA
Zero voltage	@Ip=0	+2.5±0.5%			V
Zero voltage drift	@ -40～+85℃	≤±0.5			mV /℃
Linearity	@Ip=0-±Ipn	≤0.1			%FS
Total precision	≤±0.7				%
di/dt accurately followed	＞50				A /μS
Response time	@100A/μ S,10%-90%			≤500	ns
Galvanic isolation	@ 50HZ,AC,1min 2.5				KV
Bandwidth	@ -1db DC～200				KHZ
