Split-Core CT ESCT-055-600

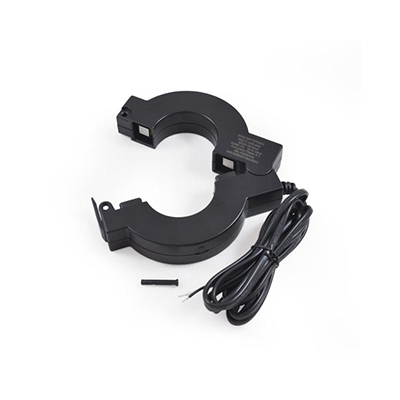

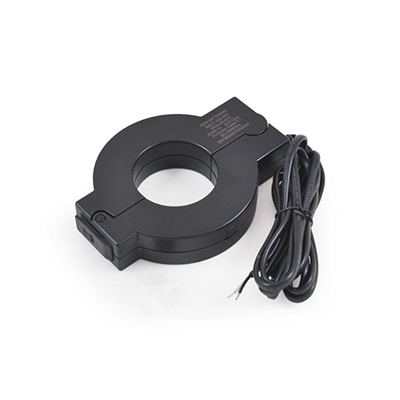

These 55mm Split Core CTs are easy to install: simply snap these current transformers around the wires being read. They are very compact and can measure the current used in the majority of residential electrical systems. These CTs are designed to be used in conjunction with electric meters for any load from 1/4 amp to 600 amps.

Product Details

Technical Specifications

• Model: ESCT-055-600

• Type: Split Core

• Rated Input: 0.25-600 Amps

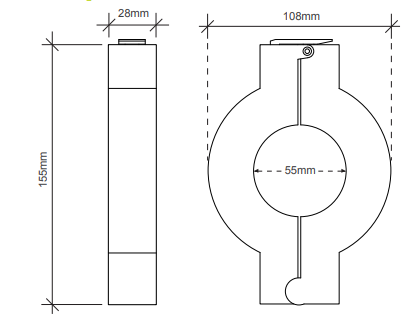

• Inside Diameter: 55mm

• Outside Diameter: 108mm

• Output: 26.6mA

• Accuracy: ± 0.1% accurate.

• When used in conjunction with our Omnimeters, the installation will have an accuracy of ± 0.5%.

• Leads: 6 feet, 22AWG

• Internal windings: 23,076
