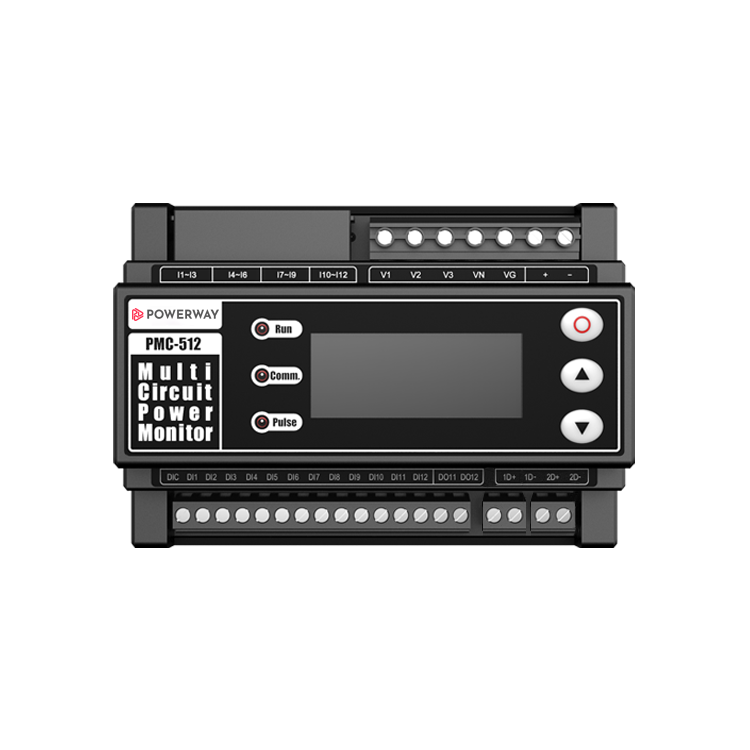

Multi-Circuit Energy Meter PMC-512A | Precision Power Monitoring Solutions

Measurements

·  ULN & ULL per Phase and Average, Phase Angle, Ung, Frequency

·  1-Ø SM: Current, Phase Angle, Loading Factor, P, Q, S, PF, kWh, kvarh Import/Export, kVAh

·  3-Ø SM: I Average, P, Q, S, PF Total, kWh, kvarh Import/Export, kVAh Total

·  VM: P, Q, S Total, kWh, kvarh Import/Export, kVAh Total

Demand Measurements

·  1-Ø SM: Current, P, Q, S

·  3-Ø SM and VM: P, Q, S Total

·  Max. Demands for This Month and Last Month

·  Ability to reset any Max. Demands

Power Quality

·  THD, TOHD, TEHD

·  Individual Harmonics up to 31st

·  U and I Unbalance

SOE

·  512 events time-stamped to ±1ms resolution

·  DI/DO changes, Alarms, Setup changes, Self-Diagnosis

Data Recording

·  4MB Log Memory

·  Up to 60 parameters @ min. 1-min recording interval for 5,000 logs with Timestamps

·  24 Monthly Energy Logs

- 1-Ø SM, 3-Ø SM and VM: kWh, kvarh Import/Export & kVAh

·  1,000 Daily Freeze Logs

- 1-Ø SM: Current, P, Q, S, kWh, kvarh Import/Export & kVAh

- 3-Ø SM and VM: P, Q, S Total, kWh, kvarh Import/Export & kVAh

Inputs & Outputs

·  12xDI, Dry Contact with 24VDC self-excitation

·  1xDO, mechanical relay @ 250VAC/5A or 30VDC/5A

Communications

·  2xRS-485, Modbus RTU protocol

·  Baud Rate @ 1,200 to 57,600 bps

Real-Time Clock

·  Battery-backed Real-time Clock with 6ppm accuracy (<0.5s per day)
