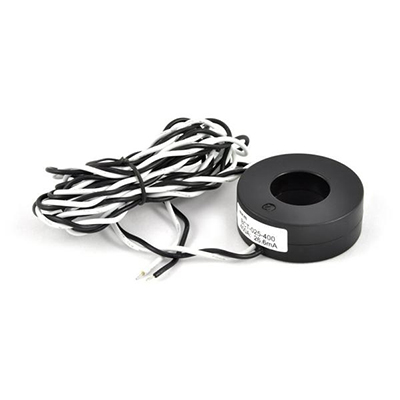

Solid-core CT BCT-025-400
All of our current transformers(CTs) have been designed with care to provide accuracy and consistency, in conjunction with our Omnimeter line of kWh meters, for a wide variety of users and use cases.
Product Details
Technical Specifications
• Model: BCT-025-400
• Type: Solid Core
• Rated Input: 0.5-400 Amps

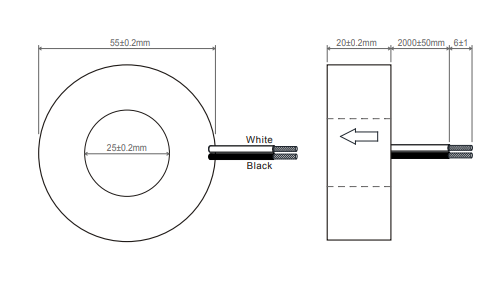

• Inside Diameter: 25mm
• Outside Diameter: 55mm
• Output: 26.6mA
• Accuracy: ± 0.1% accurate.
• When used in conjunction with our Omnimeters, the installation will have an accuracy of ± 0.5%.
• Leads: 6 feet, 22AWG, UL1015
• Internal windings: 15,037
• Frequency: 50–60Hz
• Operating Temperature: -25ºF–167ºF
• Storage Temperature: -49ºF–185ºF
• The arrow points towards the load
