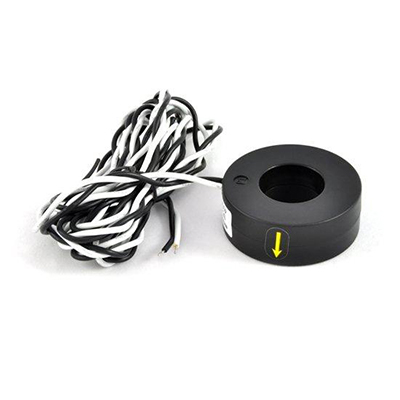

Solid-core CT BCT-025-200
These CTs are extremely accurate down to a few watts with a degree of precision of 0.1%. They have 7518 internal turns, creating a 26.6mA output at full amperage. Use these CTs for any system from under 1/4 amp to 200 amps.
Product Details
• Model: BCT-025-200
• Type: Solid Core
• Rated Input: 0.1-200 Amps

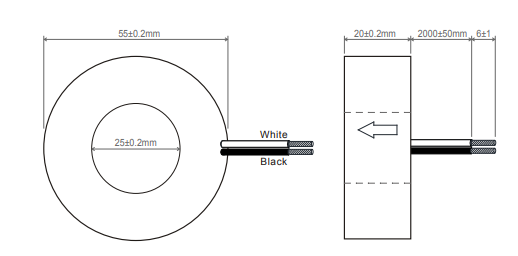

• Inside Diameter: 25mm
• Outside Diameter: 55mm
• Output: 26.6mA
• Accuracy: ± 0.1% accurate.
• When used in conjunction with our Omnimeters, the installation will have an accuracy of ± 0.5%.
• Leads: 6 feet, 22AWG, UL1015
• Internal windings: 15,037
• Frequency: 50–60Hz
• Operating Temperature: -25ºF–167ºF
• Storage Temperature: -49ºF–185ºF
• The arrow points towards the load.
