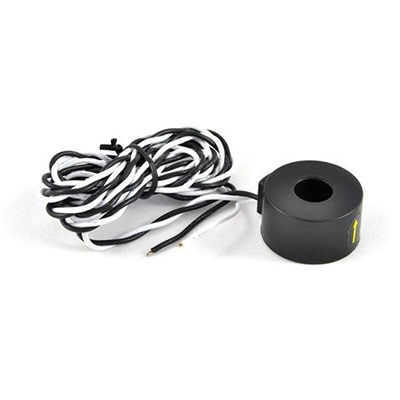

Solid-core CT BCT-015-200
Functions and characteristics All of our current transformers(CTs) have been designed with care to provide accuracy and consistency, in conjunction with our Omnimeter line of kWh meters, for a wide variety of users and use cases.
Product Details
Datasheet
Technical Specifications
• Model: BCT-015-200UL
• Type: Solid Core
• Rated Input: 0.1-200 Amps
• Inside Diameter: 15mm
• Outside Diameter: 42mm
• Output: 26.6mA
• Accuracy: ± 0.1% accurate.
• When used in conjunction with our Omnimeters, the installation will have an accuracy of ± 0.5%.
• Leads: 6 feet, 22AWG, UL10155
• Internal windings: 7,014
• Frequency: 50–400Hz
• Operating Temperature: -40ºF–158ºF
• Storage Temperature: -49ºF–185ºF
• The arrow points towards the load.

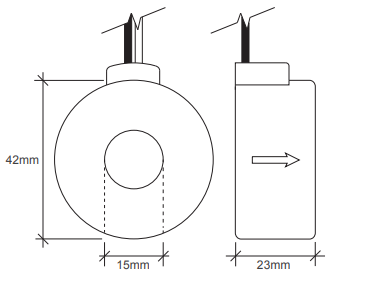

Dimension
